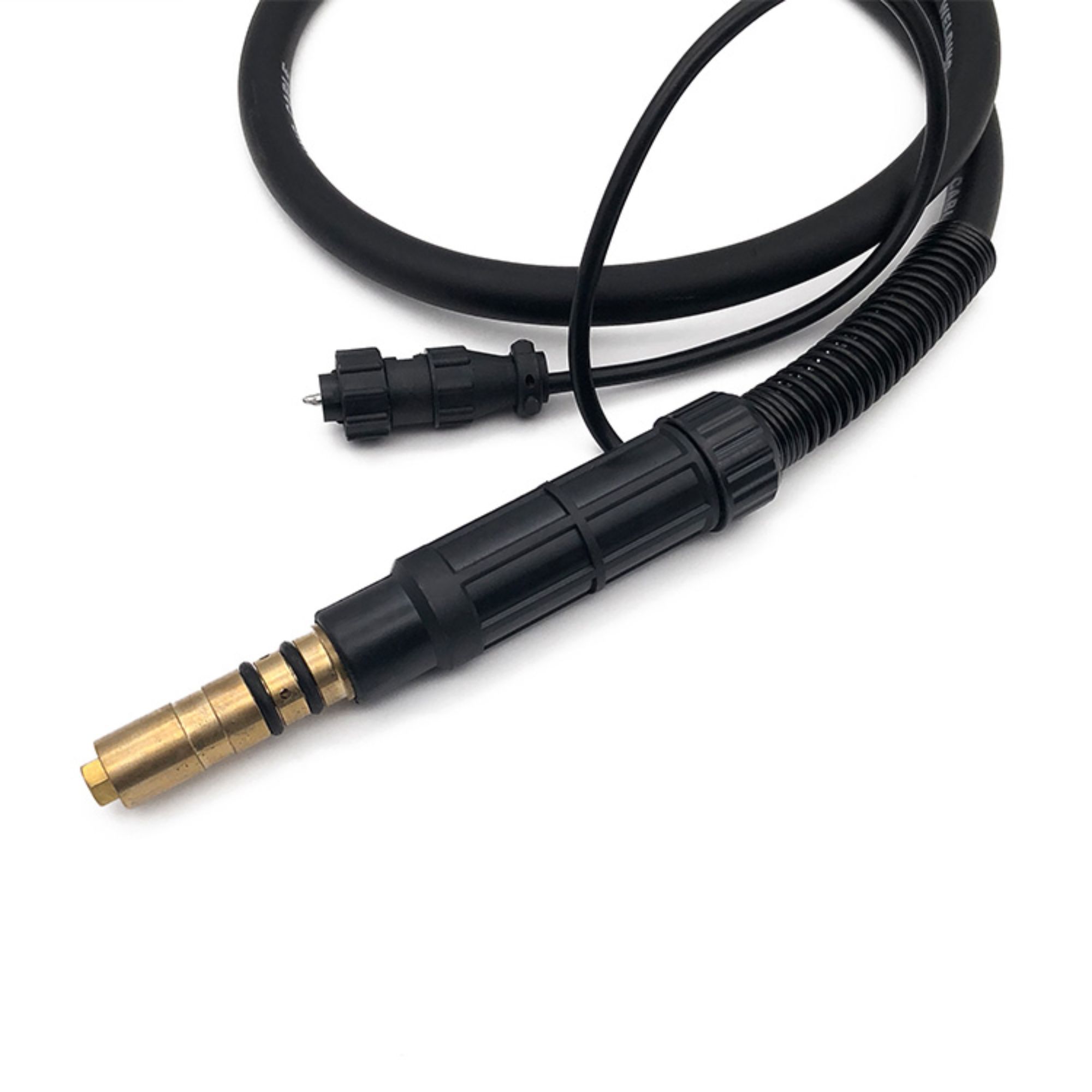

M-10 AIR COOLED MIG GUN
Technical Data：
Rating:150A CO2/90A Mixed Gases
Duty Cycle:60%
Wire Size:.030”-.035” (0.8-0.9mm)
| Mig torch miller M10 AIR COOLED soldering torch DATA |
| No. | Description | Order |
| M-10 MIG GUN 10ft(3.0m) | 195605 | |

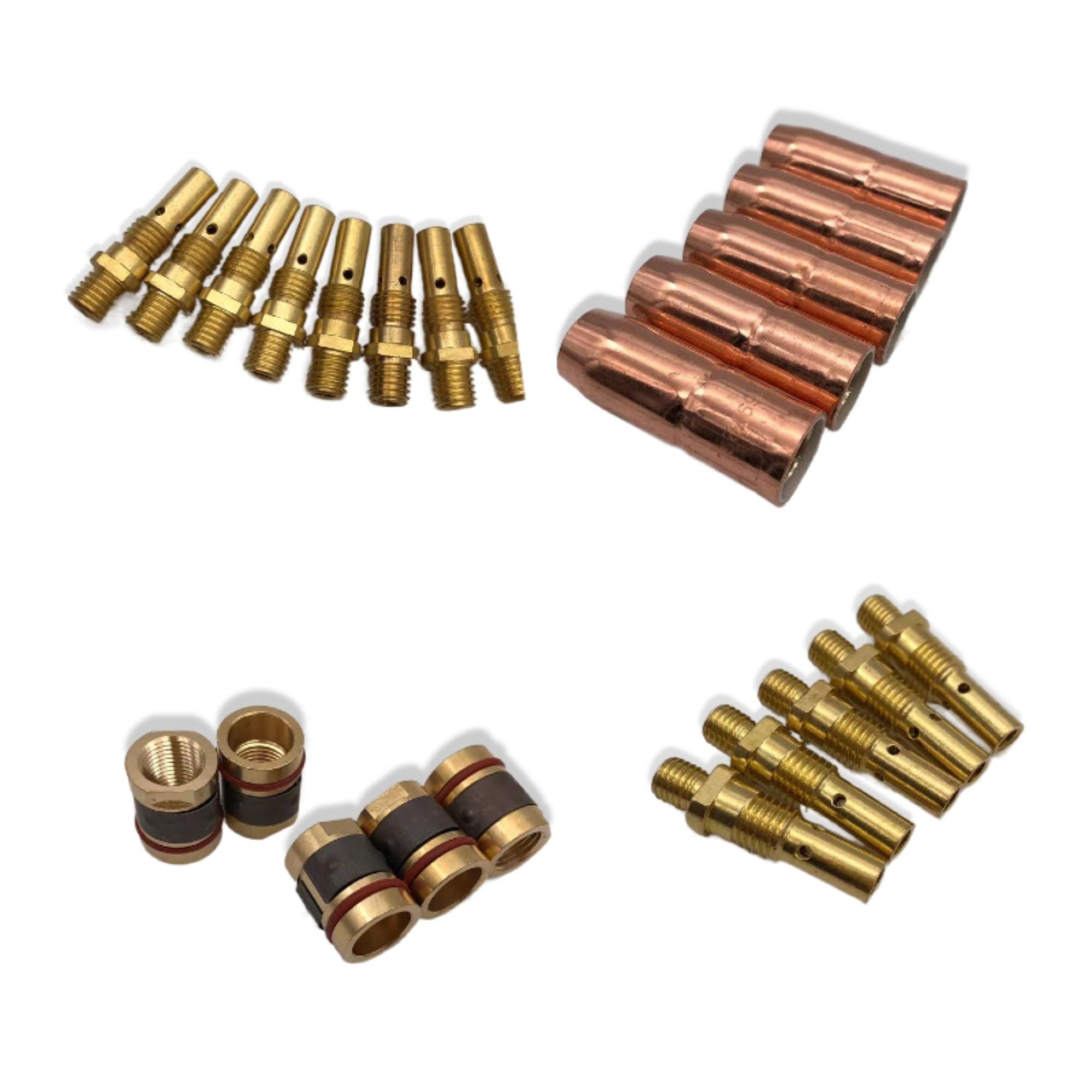

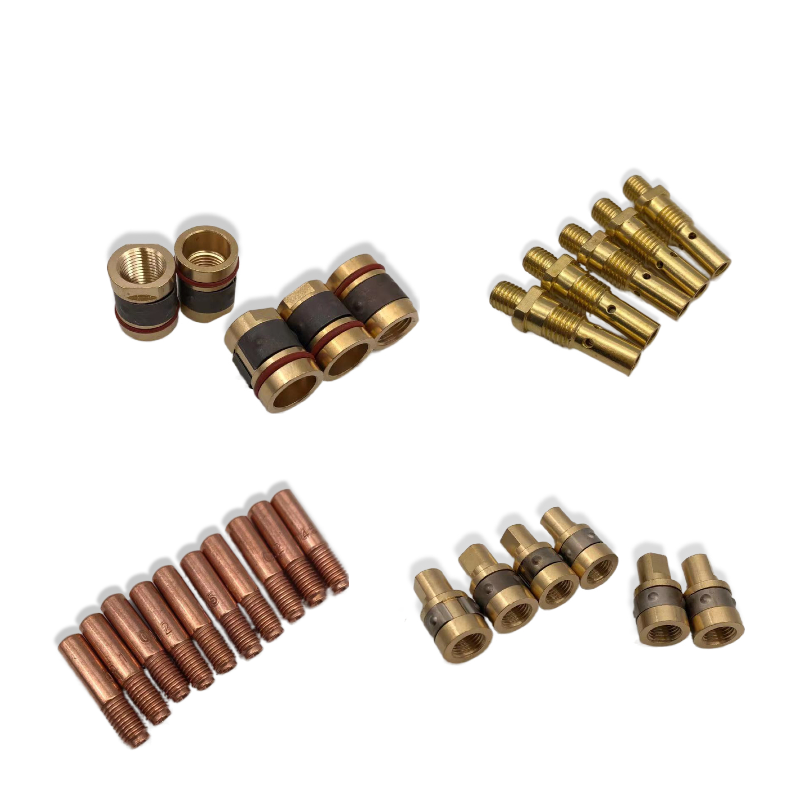

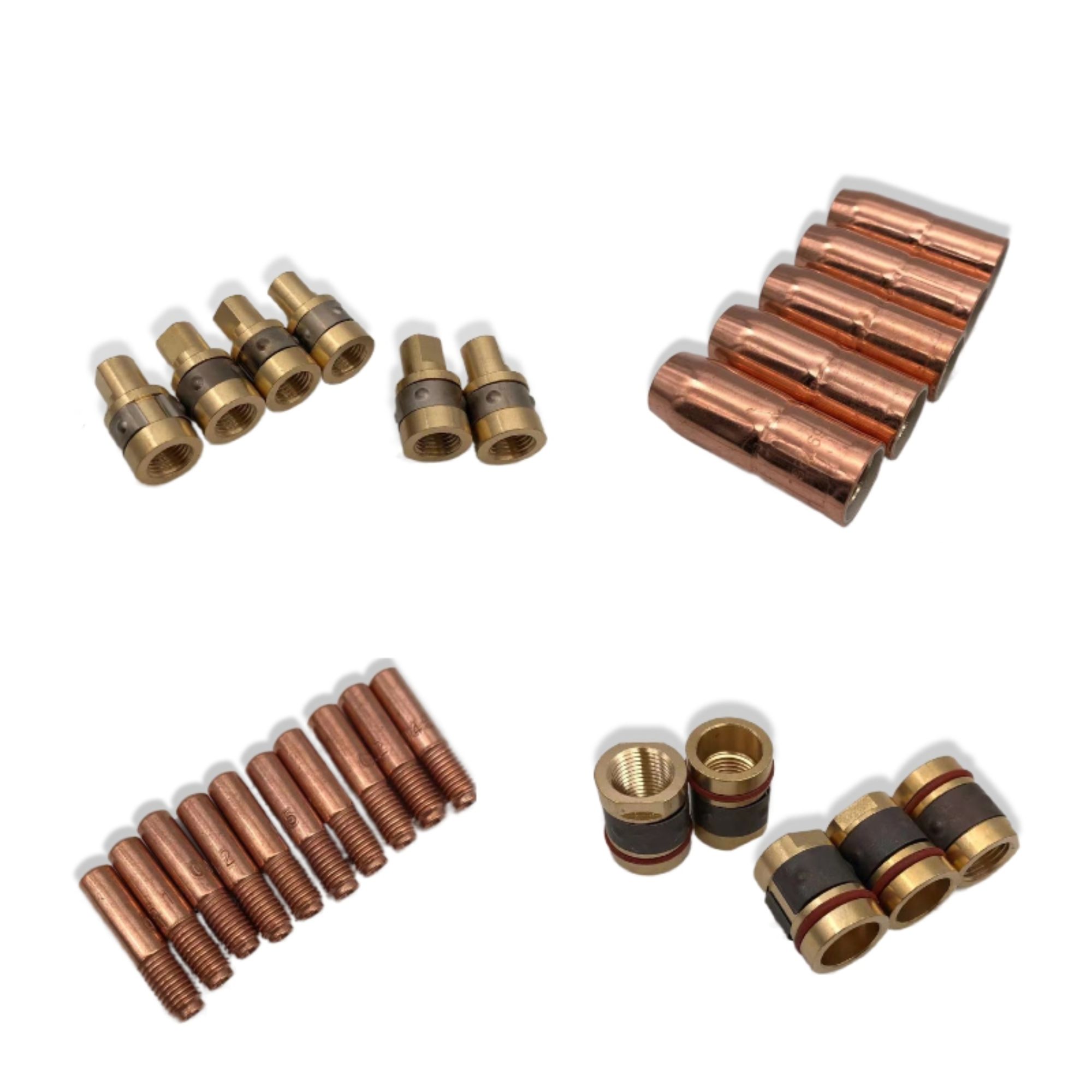

| A | Nozzle Conical 1/2” 12.7mm | 169715 |
| B | Contact Tip .023” 0.6mm | 087299 |
| Contact Tip .030” 0.8mm | 000067 | |
| Contact Tip .035” 0.9mm | 000068 | |
| Contact Tip .045” 1.2mm | 000069 | |
| C | Contact Tip Adapter | 169716 |
| D | Liner for .023”(0.6 mm) 15ft(4.6m) | 194010 |
| Liner for .030”-.035”(0.8-0.9mm) 15ft(4.6m) | 194011 | |
| No. | Description | Order |
| 1 | Swan Neck | 169718 |
| 2 | Front Handle | 9SG2209 |
| 3 | Switch | 185.0031S |
| 4 | Cable Assembly | |
| 5 | Handle Cable Support Spring | MNS |
| 6 | Rear Handle | 246380 |

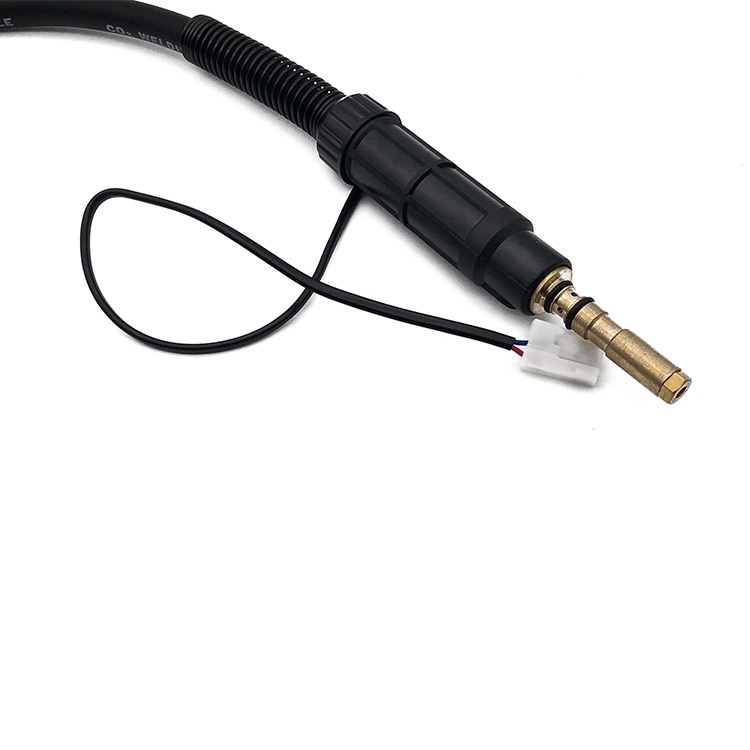

| 7 | Central Connector | 242833 |
| 8 | Housing Plug and Pins | 079878 |

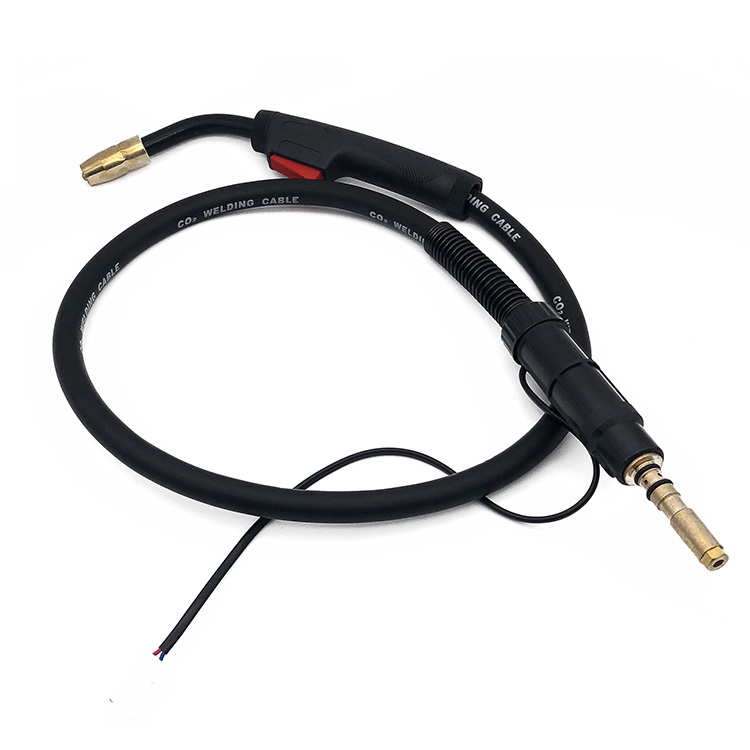

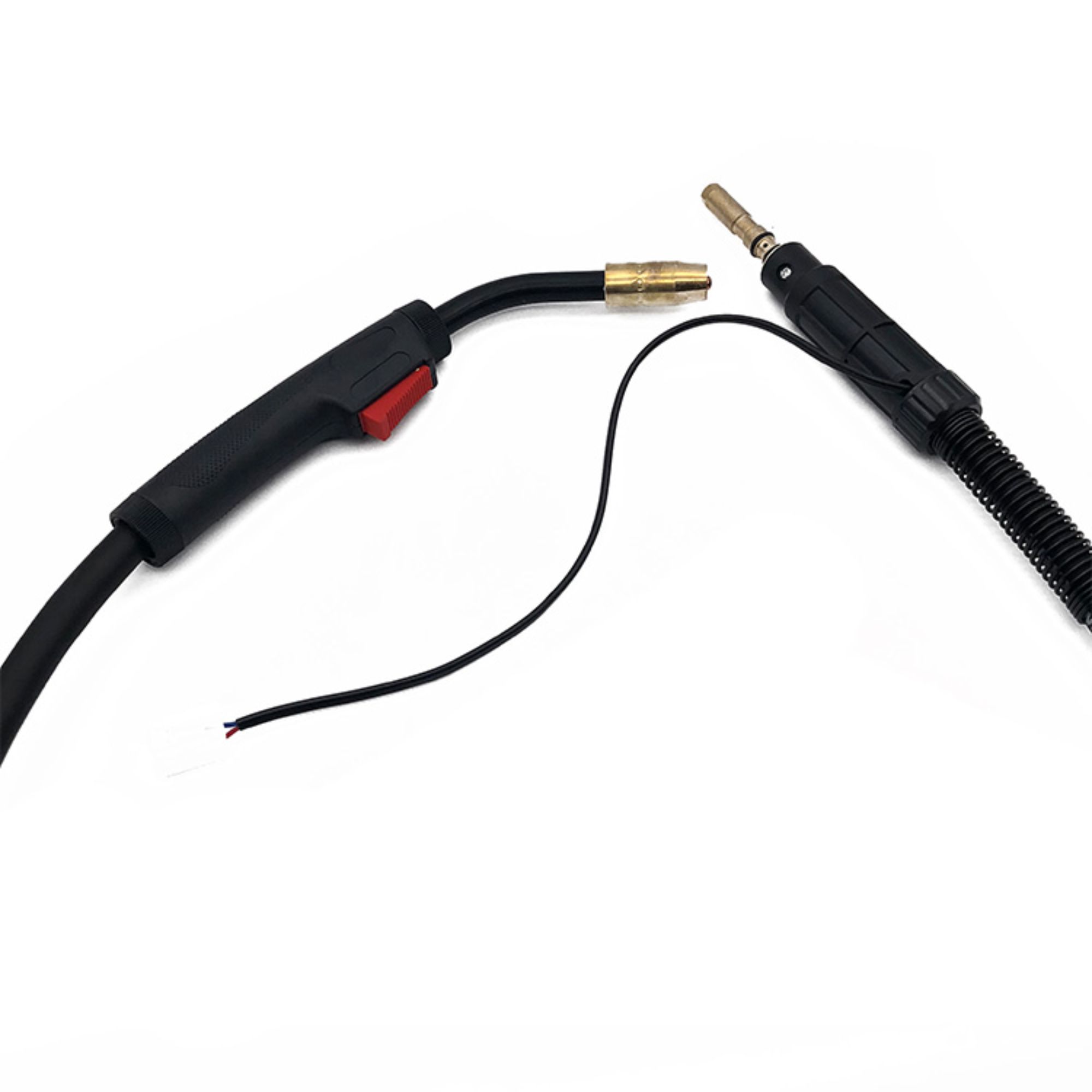

| Mig torch miller M10 AIR COOLED soldering torch Show |
| Mig torch miller M10 AIR COOLED soldering torch packing: |
1pc packing in small box, then 5pc packing one carton.
135pc packing one pallet.
