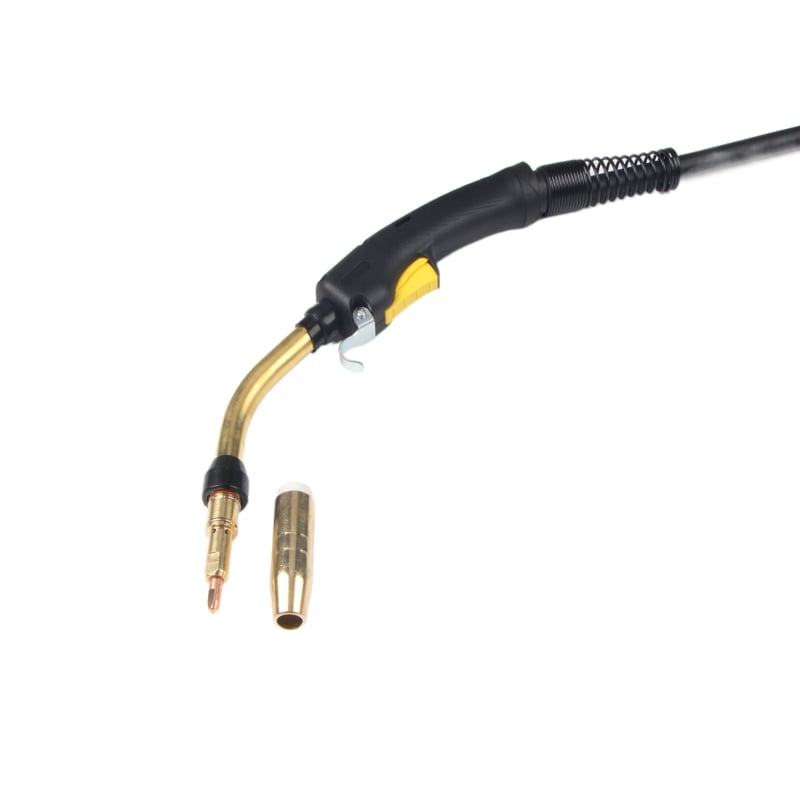

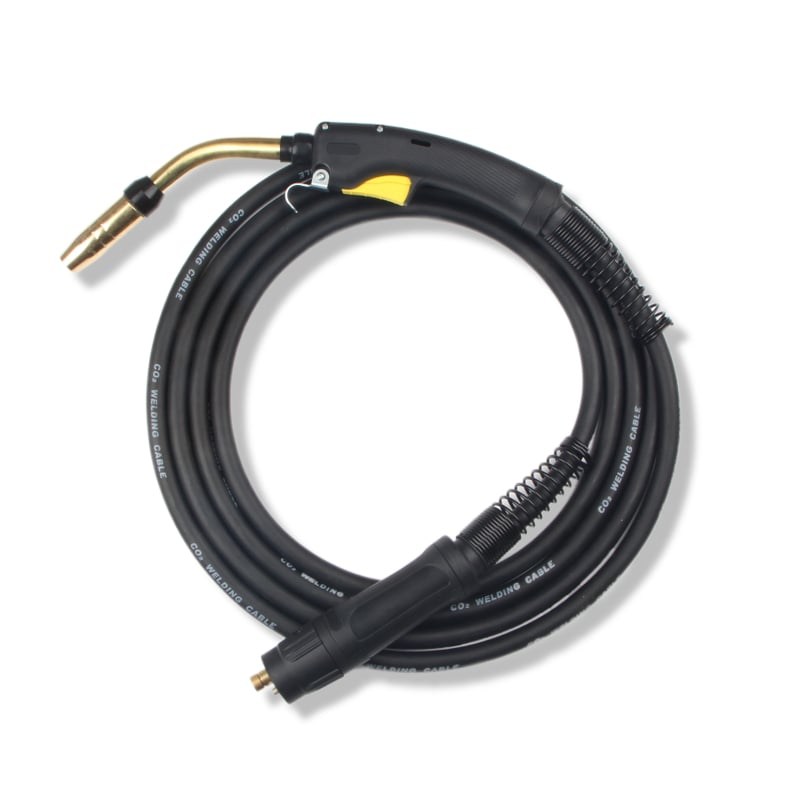

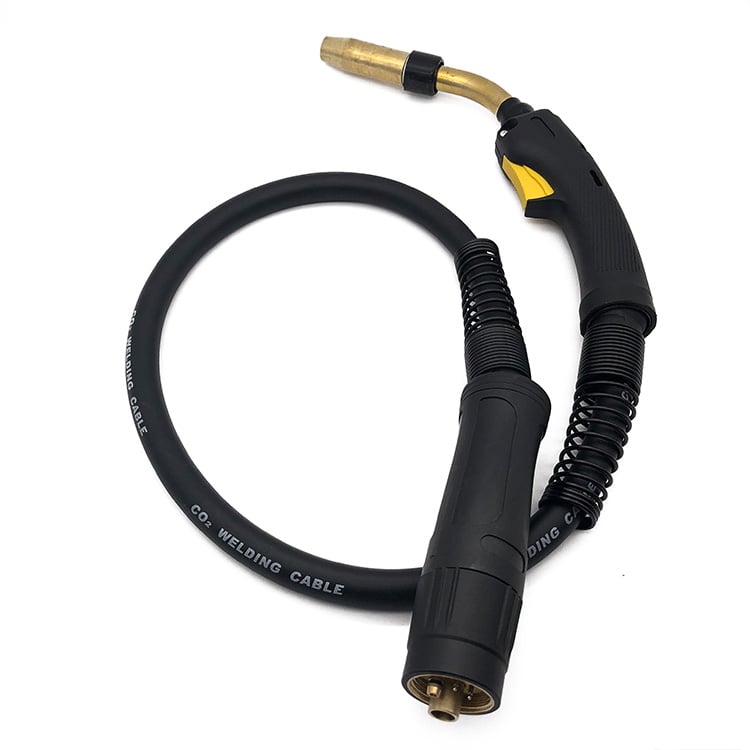

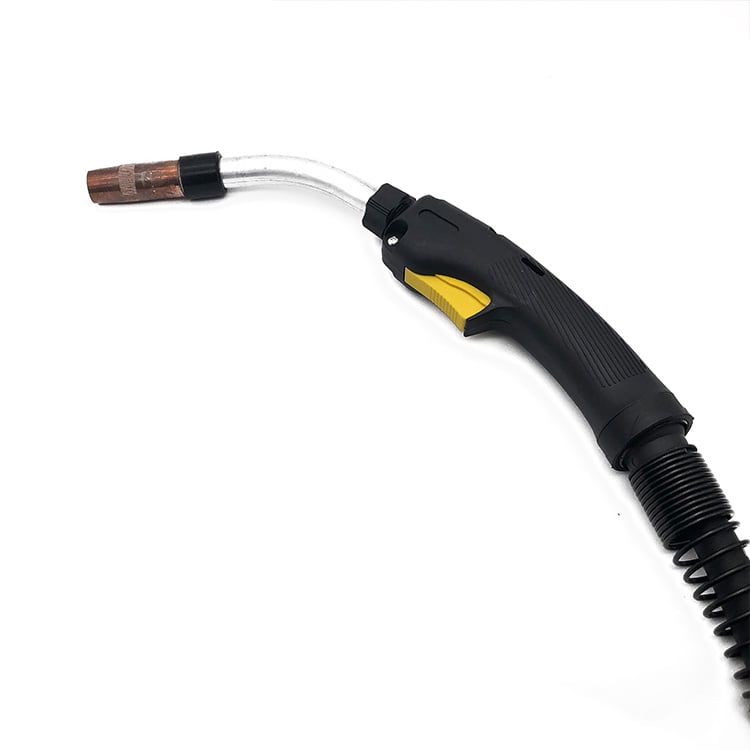

| BND 400A AIR COOLED MIG WELDING TORCH | ||
| Technical Data：Rating:400A CO2/350A Mixed Gases | ||
| Duty Cycle: 60% | ||
| Wire Size: .025”-1/16”(0.6-1.6mm) | ||
| Type | 10ft(3.0m) | |
| BND400 MIG Gun Euro Connector | BND40010E | |
| BND400 MIG Gun Miller Connector | BND40010M | |
| BND400 MIG Gun Tweco Connector | BND40010T | |
| BND400 MIG Gun Lincoln Connector | BND40010L | |
| No. | Description | Order |
| A | Nozzle Brass 3/4″ 19mm | 4491 |
| Nozzle Brass 9/16″ 14.3mm | 4492 | |
| Nozzle Copper 3/4″ 19mm | 4591 | |
| Nozzle Copper 9/16″ 14.3mm | 4592 | |
| B | Contact Tip .023” 0.6mm Short 31mm | 7497 |
| Contact Tip .030” 0.8mm Short 31mm | 7488 | |
| Contact Tip .035” 0.9mm Short 31mm | 7489 | |
| Contact Tip .039” 1.0mm Short 31mm | 7496 | |
| Contact Tip.045” 1.2mm Short 31mm | 7490 | |
| Contact Tip .052” 1.4mm Short 31mm | 7498 | |
| Contact Tip 1/16” 1.6mm Short 31mm | 7491 | |
| Contact Tip 5/64” 2.0mm Short 31.8mm | 7492 | |
| Contact Tip 3/32” 2.4mm Short 31.8mm | 7493 | |
| B-1 | Contact Tip .023” 0.6mm Long 50mm | 1597 |
| Contact Tip .030” 0.8mm Long 50mm | 1588 | |
| Contact Tip .035” 0.9mm Long 50mm | 1589 | |
| Contact Tip .039” 1.0mm Long 50mm | 1596 | |
| Contact Tip .045” 1.2mm Long 50mm | 1590 | |
| Contact Tip .052” 1.4mm Long 50mm | 1598 | |
| Contact Tip 1/16” 1.6mm Long 50mm | 1591 | |
| Contact Tip 5/64” 2.0mm Long 50.8mm | 1592 | |
| Contact Tip 3/32” 2.4mm Long 50.8mm | 1593 | |
| C | Gas diffuser for Short Tips | 4435 |
| C-1 | Gas diffuser for Long Tips | 4635 |
| D | Insulator | 4423R |
| E | Liner for .045”-.1/16” (1.2-1.6) 10ft (3.0m) | 44210 |
| Liner for .045”-.1/16” (1.2-1.6) 15ft (4.6m) | 44215 | |
| Liner for .045”-.1/16” (1.2-1.6) 25ft (7.6m) | 44225 | |
| No. | Description | Order |
| 1 | Swan neck | 4794* |
| 2 | Insulator | 4780 |
| 3 | End fitting | 4313B |
| 4 | Cone nut | 1540003 |
| 5 | Front Handle | 1880198 |
| 6 | Hook | 1790002 |
| 7 | Switch | 5662 |
| 8 | Cable Ball Joint & Support Spring Big | 400.1010B |
| 9 | Gun & Cable Asbly 10ft(3.0m) | 1060115 |
| Gun & Cable Asbly 12ft(3.6m) | 1060116 | |
| Gun & Cable Asbly 15ft(4.6m) | 1060117 | |
| 10 | Euro Direct Plug Kit | 1199E |
| 44835 | Rear Handle | 501.2248 |
| 44836 | Adaptor nut | 4861 |
| 44837 | Bernard Euro Central Connector | 5060 |
| 11 | Rear Handle American Brand | 2520047 |
| 12 | Control Wire (Tweco/Miller) | MAK-354 |
| 44896 | Control Wire (TLincoln) | LAK-354 |
| 13 | Tweco Central Connector | 2200103 |
| 14 | Miller Central Connector | 2200101 |
| 15 | Lincoln Central Connector | 2200099 |
| 44576 | Gas Tube | LKGAS |
Bnd mig welding consumables
Bernard 400A CO2 mig welding torch package
* 1 piece Bernard CO2 mig torch 400A package in a carton
Our Sevice
* timely online 24 hours .
* sample order /trail order is available .
*supply the qualified products.
*after -sale service
*processing customer's sample .
